Droplets with emitters

Demonstrates how the dynamics of droplets can be affected by randomly positioned points in the background fluid that emit extra material.

  0%|          | 0/10.0 [00:00<?, ?it/s]
Initializing:   0%|          | 0/10.0 [00:00<?, ?it/s]
  0%|          | 0/10.0 [00:04<?, ?it/s]
  1%|          | 0.1/10.0 [00:07<11:50, 71.76s/it]
  2%|▏         | 0.2/10.0 [00:07<05:51, 35.88s/it]
  3%|▎         | 0.3/10.0 [00:07<03:52, 23.92s/it]
  3%|▎         | 0.3/10.0 [00:07<03:52, 23.92s/it]
100%|██████████| 10.0/10.0 [00:07<00:00,  1.39it/s]
100%|██████████| 10.0/10.0 [00:07<00:00,  1.39it/s]

from droplets import SphericalDroplet
from pde import UnitGrid

import emulsim

# set up state
grid = UnitGrid([32, 32], periodic=True)
background = emulsim.ScalarFieldElement(parameters={"grid": grid})
droplet_data = [SphericalDroplet(grid.get_random_point(), 1) for _ in range(3)]
droplets = emulsim.SphericalDropletsElement.from_droplets(droplet_data)
state = emulsim.State({"background": background, "droplets": droplets})

# set up simulation
simulation = emulsim.Simulation(state)
simulation.add_actor(
    "background", emulsim.DiffusionActor(parameters={"diffusivity": 0.1})
)
positions = [grid.get_random_point() for _ in range(5)]
simulation.add_actor(
    "background", emulsim.EmittersActor({"positions": positions, "strengths": 10})
)
simulation.add_actor(("droplets", "background"), emulsim.SphericalDropletActor())

# run simulation
result = simulation.run(t_range=10)

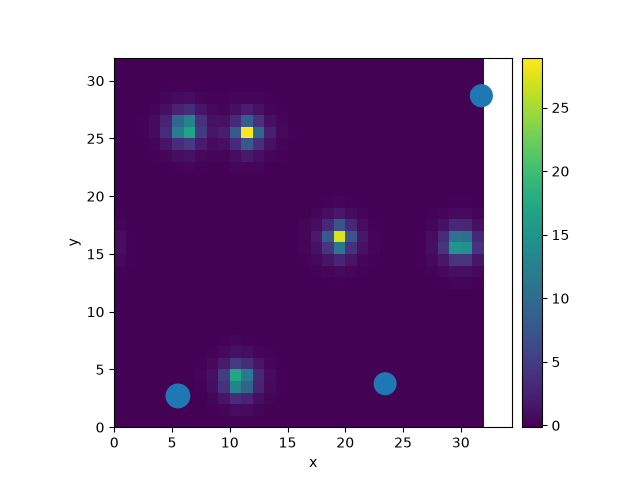

result.plot()
